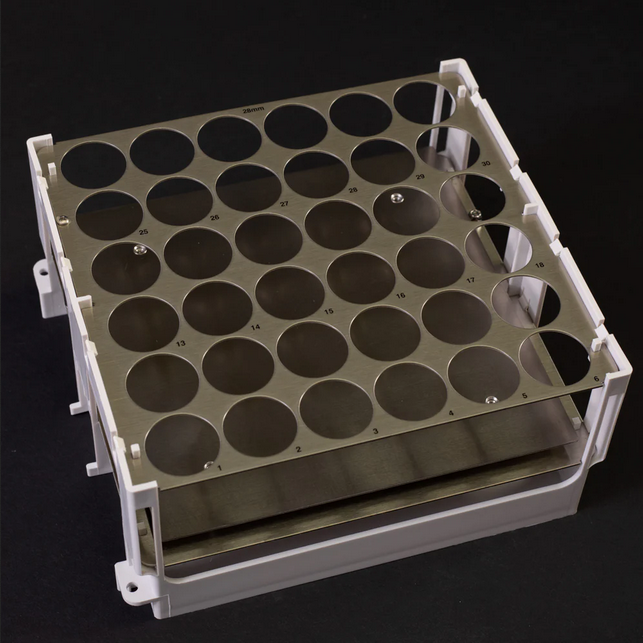

Teledyne High Flow Foxy R2 Fraction Collector with Diverter Valve including compression Fittings for 1/4 inch OD tubing. Maximum Flow Rate up to 1 L/min. RFID Sensors for Fast and Error free Setup. Includes (2) racks for 25 mm Tubes.

$15,068.80

In stock

Overview

SKU

FCR2HF

Overview

Teledyne High Flow Foxy R2 Fraction Collector with Diverter Valve including compression Fittings for 1/4 inch OD tubing. Maximum Flow Rate up to 1 L/min. RFID Sensors for Fast and Error free Setup. Includes (2) racks for 25 mm Tubes. (Substitution of Same-Price Racks Must be Specified on Purchase Order.)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

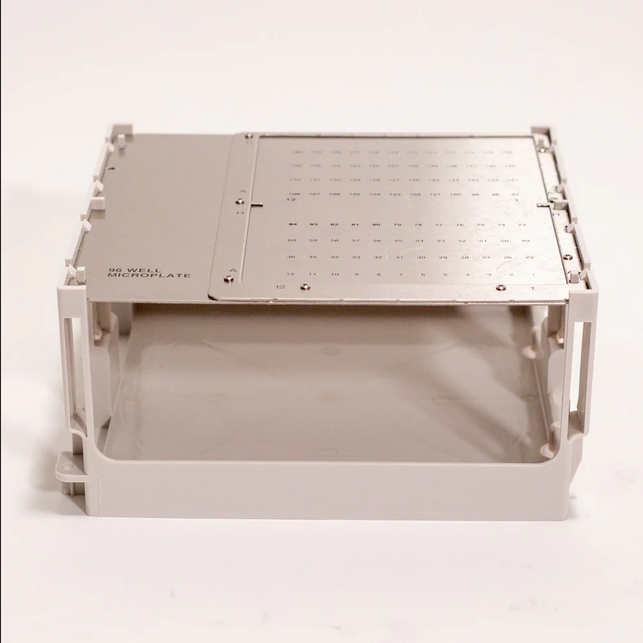

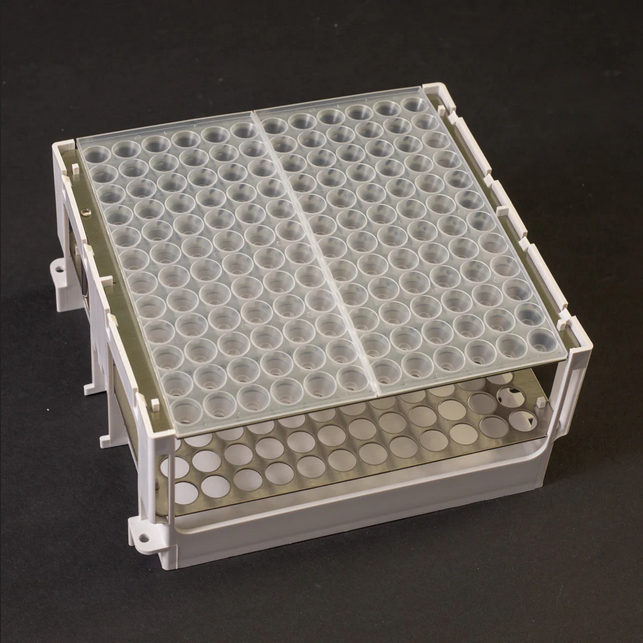

The Two-Rack Foxy R2 Fraction Collector can be Adapted to a Broad Spectrum of Applications. The Units can Distribute Fractions into 96 Well Microplates, Standard Tube Sizes, and Bottles. For Essentially Unlimited Volumes, Funnel Racks can Direct Fluids to any Collection Vessel or Downstream Process. The Foxy R2 Fraction Collector uses two Racks with Radio Frequency Identification (RFID) to Automatically Detect Collection Racks for Easy Setup.

Collect Peaks of Interest Separately Using any Combination of Slope, Level, and Time Window Reliably Separates Peaks by Monitoring Detector Output, so you don’t have to Expend Glassware on No-Interest Effluent
Collect Uniform Fractions by Time, Drop Count, or Pumped Volume
Stores up to 8 Collection Methods

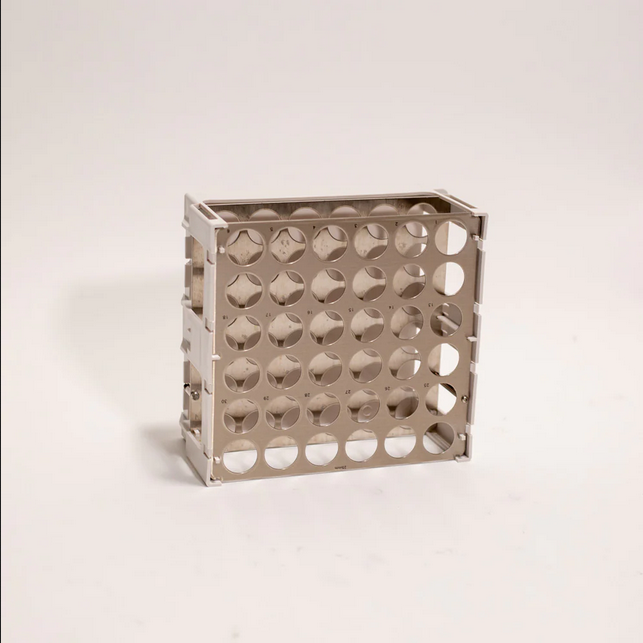

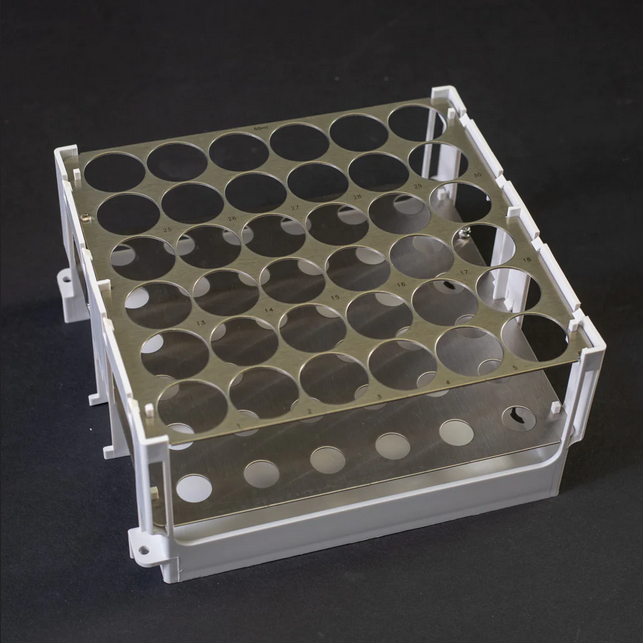

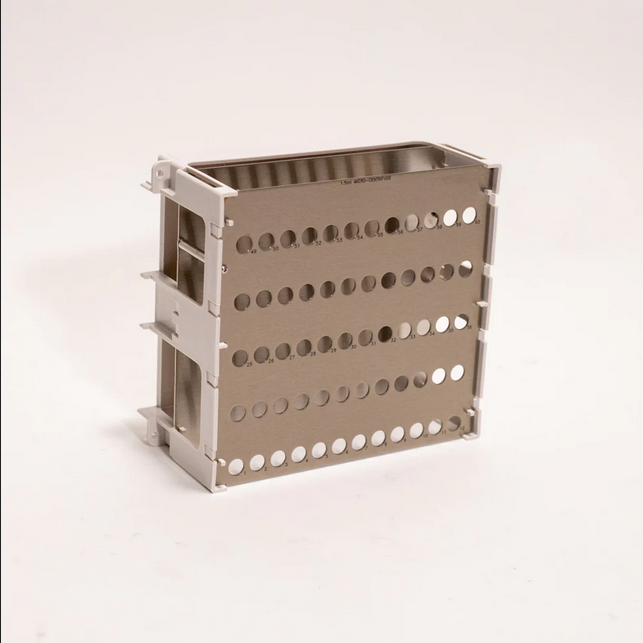

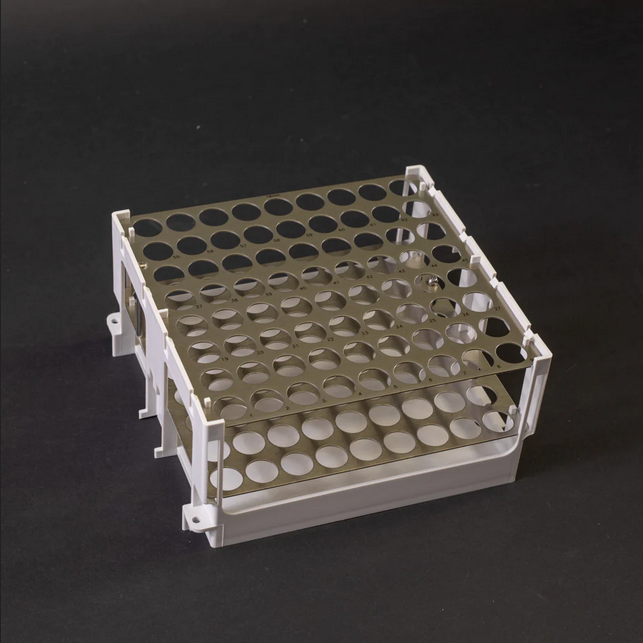

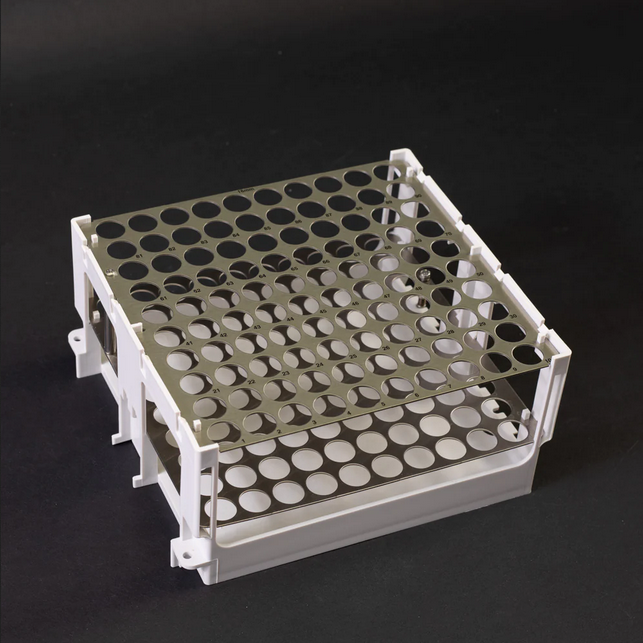

Choice of Available Racks (Specify when Ordering)
Coldroom-Friendly Design|Sturdy Cast Aluminum Frame
Easy to use Symbolic Touch Screen Interface
Built-in Ethernet and RS-232 Communication Capabilities
Faster Tube Changes
µL Delay Volume between Diverter Valve and Drop Former
Flow Rates to 125 mL/minute

Technical Specifications

More Information
Automatic Shut-Off	Rack Full, Last Tube, end of Time Window or External Signal
Certification	CE, CSA
Construction Materials	Cast Aluminum
Dimensions (H x W x D)	12.25 x 15.5 x 21.0 in
Diverter Valve (3-Way)	Included
Diverter Valve Materials	PEEK and FFKM (Fluoroelastomer)
Drip Tray Materials	Polypropylene
Drop	1 to 999 Drops Per Fraction
Drop Former Materials	PEEK
Funnel Racks Materials	ECTFE (Halar) or ETFE (Tefzel) Funnels
Inputs	Pump Counter, External Peak, Inject, Tube Advance: +3.3 to 5 VDC or Contact Closure, Active Low, 30 ms Minimum, 5 VDC Max. Analog Peak Voltage: 0 to 1.0 V Nominal, –1.2 to + 1.2 V Usuable, –5 to +5 V Max
Max Fraction Volume	Unlimited with Funnel Racks
Maximum Flow Rate	Up to 1 L/min
Maximum Tube Height	180 mm
Maximum Tube Qty	288 12/13 Tubes mm
Memory	Eight Methods
Operating Voltage	100 to 240 VAC, 50 to 60 Hz, 1 Ampere Maximum
Outputs	Pump Pause/Stop and Event (Tube Change), 300 ms: Open Collector, Active Low, 15 VDC/100 mA Maximum.
Peak Detection	Slope, Threshold, Three Time Windows, Combination of any of the above Collection Modes
Product Type	Fraction Collector
Racks	2, with RFID
Racks Materials	Stainless Steel and Polypropylene
Solvent Compatibility	Aqueous and Organic
System Control	Front Panel Touch Screen, Ethernet or RS-232
Test Tube Time Change	0.10 to 0.58 sec (dependent on collection vessel tube advance speed)
Time	00:00:01 to 99:59:59, 1 second intervals
Valve Pressure Rating	0 to 28 psi
Volume	Up to 999 Units
Weight	22.8 lb
