LOGOS X-CLARITY™ Tissue Clearing System II
INQUIRE
In stock
Overview
SKUC30001
LOGOS X-CLARITY™ Tissue Clearing System II
Overview
LOGOS X-CLARITY™ Tissue Clearing System II (Starter Kit)
Overview

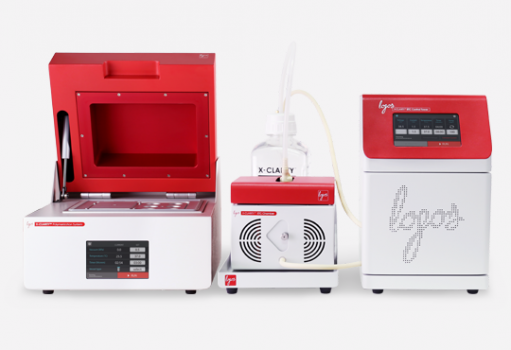

The X-CLARITY™ Tissue Clearing System II is an all-in-one, easy-to-use solution for electrophoretic tissue clearing. Its unique design accelerates the removal of lipids from tissues while preserving the structural integrity of the sample. Clear a whole mouse brain in just 6 hours, an astounding 8 times faster than the original technology. Users can set tissue clearing conditions through a simple and intuitive touchscreen interface. In ETC (electrophoretic tissue clearing) mode, platinum-plated electrodes generate an electric field to accelerate the removal of lipids from tissues in a highly efficient manner. A built-in temperature control system actively cools and heats buffer to maintain consistent buffer temperatures during clearing. Buffer is constantly circulated to ensure consistent buffering capacity, temperature control, and elimination of tissue clearing byproducts. This advanced system ensures efficient, rapid, and consistent tissue clearing
| Product Type | Tissue Clearing System II (Starter Kit) |
|---|---|
| Package Quantity | 1 Unit |
| Display Type | 5 inch TFT LCD touchscreen |
| Temperature Range | 30-60° C |
| Pump Speed Range | 50-200 rpm |
| Power Rating | 500 W |
| Voltage Rating | 5-70 V |
| Frequency Rating | 50/60 Hz |
| Current Rating | 0.2-1.5 A |
| Electrical Requirements | AC 100-240 V |
| Power Supply Modes | Constant current or constant voltage |
| Dimensions (W x D x H) | Chamber :External: (176 mm x 128 mm x 154 mm); Internal: (57 mm x 30 mm x 93 mm); Control Tower: (205 mm x 430 mm x 370 mm) |
| Weight | Chamber: 2.8 kg; Control Tower: 20 kg |
