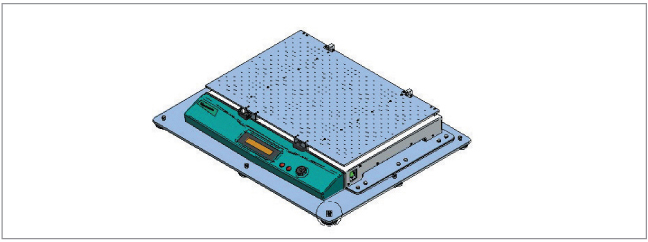

JEIOTECH SKC-6075 Shaker (orbital, 0.75" stroke) 30 to 500 rpm, 120V, 60Hz
$5,680.22
In stock
Overview
SKUAAH30106U
JEIOTECH SKC-6075 Shaker (orbital, 0.75" stroke) 30 to 500 rpm, 120V, 60Hz
Overview
JEIOTECH SKC-6075 Shaker (orbital, 0.75" stroke) 30 to 500 rpm, 120V, 60Hz
Overview
Innovative triple-cam shaking mechanism with offering reliable performance across a wide speed range.
- Microprocessor PID control maintaining constant speed
- Competitive high shaking speed up to 500 rpm

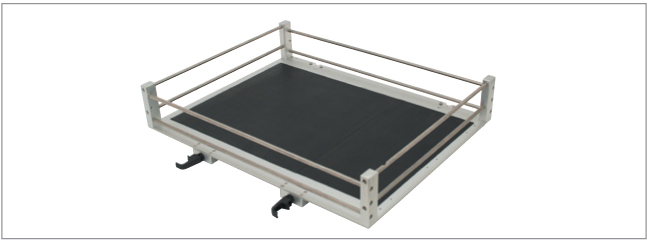

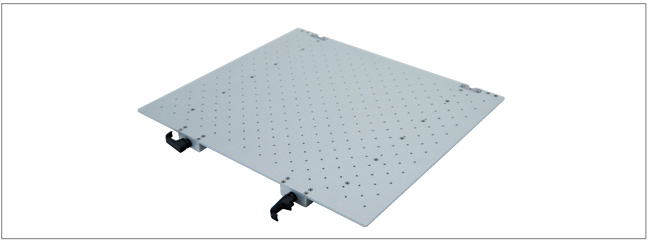

- Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
- Repetitive task can be easily performed as the platform stops where it starts
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process

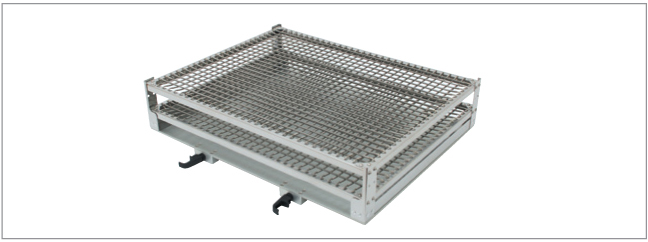

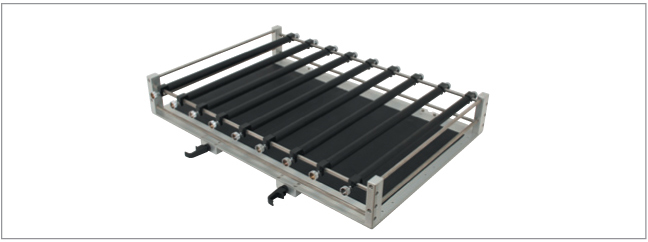

- Variety of accessories are available to meet application demands.
| Product Type | Open-Air Shaker |
|---|---|
| Style | Advanced |
| Control System | PID Feedback Control |
| Motion Type | Orbital |
| Speed | 30 to 500 RPM |
| Amplitude Size | 19.1 mm;0.75 in |
| Accuracy | ±1 % |
| Platform Dimensions | 580 x 520 mm;22.8 x 20.5 in (Small);660 x 520 mm;26 x 20.5 in (Large) |
| Dimensions | 582.8 x 618 x 122.2 mm;22.9 x 24.3 x 4.8 in |
| Display Type | VFD |
| Voltage Rating | 120 V |
| Frequency Rating | 60 Hz |
| Current Rating | 0.8 A |
| Weight | 65 kg;143.3 lb |
| Standards Met | CE Certified;RoHS Compliant |
