HARRY GEISTEIK PZ26-4 Precision Heating Bath, 400°C, 5 L, 220-240 V, 50-60 Hz

$3,868.80
In stock
Overview
SKU
PZ26-4

HARRY GEISTEIK PZ26-4 Precision Heating Bath, 400°C, 5 L, 220-240 V, 50-60 Hz

Overview
HARRY GEISTEIK PZ26-4 Precision Heating Bath, 400°C, 5 L, 220-240 V, 50-60 Hz
Overview

The precision heating baths heat vessels and bath fillings of any kind. A microprocessor-controlled PID-controller carries out the control in connection with a low-mass and fast-reacting temperature sensor. The actual temperature is constantly displayed. The adjustable set temperature appears at the push of a button. These devices are also used in rotary evaporators, for example.

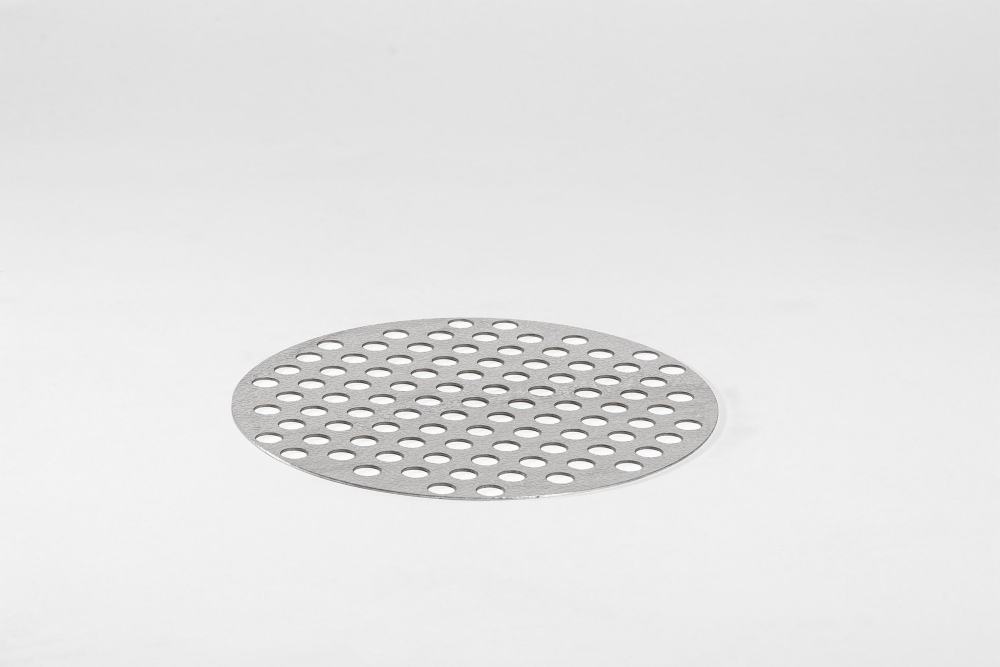

Construction: Tubular heating element and heating chamber are highly heat-resistant stainless steel. The upper jacket is fire-enameled. The bath tank has an insert support for ring sets, perforated plates, and other inserts. The housing is made of stainless steel, and the base is painted. All units are designed for continuous operation. The bath tank features a screw-on device for a support rod (Order No. ST12).

PZ26-4 for temperatures up to 400°C is suitable as a liquid, air, or sand bath. The bath filling can be oils, water, sand, or any other filling which will not attack the surface of the bath, which is made out of high-grade, stainless steel

PZ26-4 and PZ26-7 are both heated by a tightly soldered tubular heating element

More Information
Product Type Heating Bath
Volume 5 L
Material Stainless Steel
Exterior Dimensions 310 x 310 x 280 mm
Voltage Rating 220 to 240 V
Frequency Rating 50 to 60 Hz
Operating Temperature Range 20 to 400 °C
Power Rating 1200 W
Display Type Digital
Weight 6.8 kg
